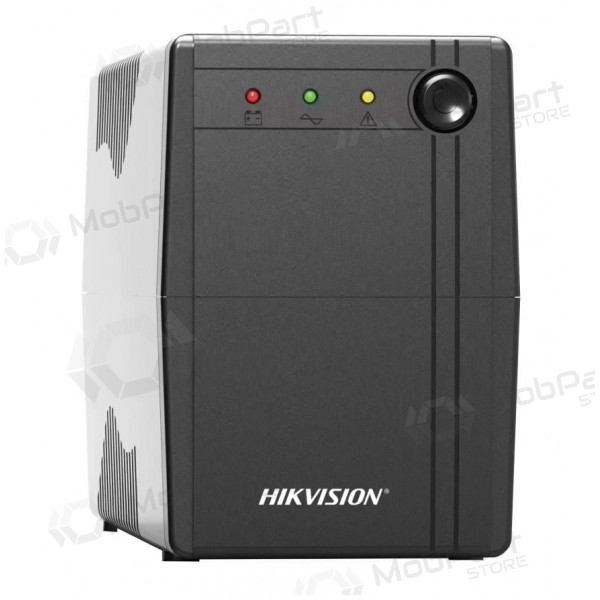

HIKVISION UPS DS-UPS600 (600VA/360W, Tower)

The HIKVISION DS-UPS600 uninterruptible power supply (UPS) is designed to provide backup power and protection for connected electronic devices. This model, featuring a 600VA/360W power capacity, effectively shields systems from voltage fluctuations, power surges, and short circuits. It is ideal for use in offices or homes where a reliable electricity supply and data security are essential during a main power outage.

Product Details

Key Features

• Type: UPS (uninterruptible power supply)
• Model: DS-UPS600
• Brand: Hikvision
• UPS Type: Offline
• Features: AVR (Automatic Voltage Regulation)
• Dimensions (W x D x H): 274 mm × 95 mm × 139 mm (10.79" × 3.74" × 5.47")
• Weight: Approx. 4.2 kg (9.26 lb)

Power

• UPS Power Capacity: 600 VA / 360 W

Battery

• Battery Type: 12 V / 7 Ah, Lead-Acid Battery
• Recharge Time: 4-6 hours (to 90% capacity)
• Typical Backup Time:
  • At 60W load: 35 min
  • At 100W load: 20 min
  • At 200W load: 3 min

Input

• Input Frequency: 50/60 Hz (auto-sensing)
• Input Voltage Range: 140 VAC to 290 VAC
• Plug Type: Schuko

Output

• Number of Outlets: 2
• Outlet Type: Schuko
• Output Frequency: 50/60 Hz ± 0.5 Hz (auto-sensing)
• Output Voltage Range: 210 VAC to 235 VAC
• Transfer Time: ≤ 10 ms
• Waveform: PWM (simulated sine wave)

Protection

• Comprehensive Protection: Against overvoltage, overload, battery discharge, short circuit

Operating Conditions

• Operating Humidity: 30% to 90% (non-condensing)
• Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)

Indicators and Alarms

• LED Indicator:
• Working Mode (AC): Green light
• Charging Mode (DC): Red light
• Overload Mode: Flashes yellow
• Alarm (Audio):
• Charging Mode (DC): Sounds every 8 seconds
• Low Battery: Sounds every second
• Overload Mode: Sounds every 0.5 seconds
• Fault: Continuous sound

Interfaces

• Communication Ports: None

---

Downloads / Certifications

📄CE Declaration

📄Specification
