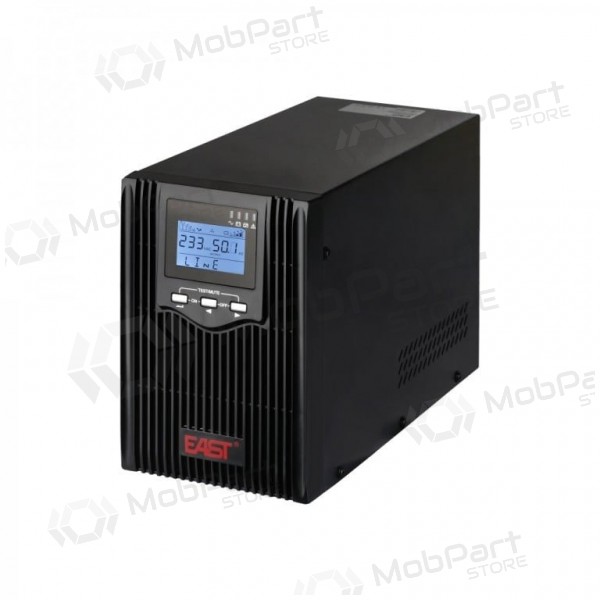

East EA630 UPS (tower, lcd, 3000va/2400 w)

This East EA630 uninterruptible power supply (UPS) is designed to ensure reliable power delivery to critical equipment, protecting it from voltage fluctuations and outages. The tower-type device with an LCD display features a 3000 VA / 2400 W capacity, suitable for servers, workstations, and network devices. It efficiently stabilizes voltage and automatically switches to battery mode during power supply disruptions.

Product Information

General Information

• Capacity: 3000 VA / 2400 W

DC Input

• Voltage: 48V

AC Input

• AC Input Range (Bypass Mode): 0 - 121/132/138/144 Vac 100/110/115/120 Vac ± 10 Vac; 0 - 242/264/276/288 Vac 200/220/230/240 Vac ± 10 Vac
• AC Input Range (Main Mode): 100 V: 70 - 130 Vac; 110 V: 80 - 140 Vac; 115 V: 85 - 145 Vac; 120 V: 90 - 150 Vac; 200 V: 145 - 260 Vac; 220 V: 165 - 280 Vac; 230 V: 175 - 290 Vac; 240 V: 185 - 300 Vac
• Input Frequency Range: 50 / 60 Hz (auto sensing), 50 / 60 Hz ± 5% - 15%

Output

• Inverter Output Range: 110V / 120 Vac; 220V / 240 Vac
• AC Output Range (Bypass Mode): 0 - 121/132/138/144 Vac 100/110/115/120 Vac ± 10 Vac; 0 - 242/264/276/288 Vac 200/220/230/240 Vac ± 10 Vac
• AC Output Range (Main Mode): 100V: 90 - 110 Vac; 110V: 99 - 121 Vac; 115 V: 103 - 126 Vac; 120 V: 108 - 132 Vac; 200 V: 166 - 226 Vac; 220 V: 188 - 245 Vac; 230 V: 199 - 254 Vac; 240 V: 210 - 264 Vac
• Output Frequency: 50 / 60 Hz ± 0.3 Hz (configurable)
• Waveform: Pure Sine Wave
• Inverter Efficiency: Max. 85%
• Energy Saving Mode: Configurable (< 3% load), activated in 80 s
• No-Load Shutdown: Configurable (< 3% load), shuts down in 80 s
• Transfer Time: 10 ms
• THDV (for Resistive Load): 5%

Protections

• Protection Types: Overload, short circuit (inverter), low battery voltage, battery overcharge, over temperature
• Overload (Main Mode): 110% 120 s, 125% 60 s, 150% 10 s (switches to bypass mode)
• Overload (Inverter Mode): 110% 60 s, 125% 10 s, 150% 5 s (shuts down directly)

Battery

• Built-in Standard Model Battery: 12 V/9 Ah x 4
• Charging Current (Long-Run Model H): 10 A (default); < 10 A, adjustment step 1 A; > 10 A, adjustment step 5 A
• Charging Voltage (Single Battery): 14.1 Vdc (default), 13.6 - 15 Vdc adjustable
• Low Voltage Activation Point (Single Battery): 13.5 Vdc (default), 13.2 - 14.6 Vdc adjustable
• Low Voltage Shutdown Point (Single Battery): 10.2 Vdc (default), 9.6 - 11.5 Vdc adjustable

Physical Characteristics and Environment

• Operating Conditions: 5°C - 40°C
• Noise Level: ≤ 55dB (1m)
• Dimensions without Packaging (W × D × H): 190 x 467 x 335.5 mm
• Dimensions with Packaging (W × D × H): 320 x 592 x 462 mm
• Weight: 26.7 kg

Features and Connections

• Connections: 3 x Schuko, 3 x C13, USB, 2 x RJ11
• LCD Display
• Digital Control
• AVR for Voltage Stabilization
• Automatic Frequency Tracking
• Wide Voltage Range
• Self-Test on Startup
• Starts without Mains Power - Cold Start Function
• Auto-Restart upon AC Recovery
• Battery Status Monitoring
• Multiple Protections: Short circuit, overload, etc.
• RS232 / USB Communication and RJ11 / RJ45 Protection

---
