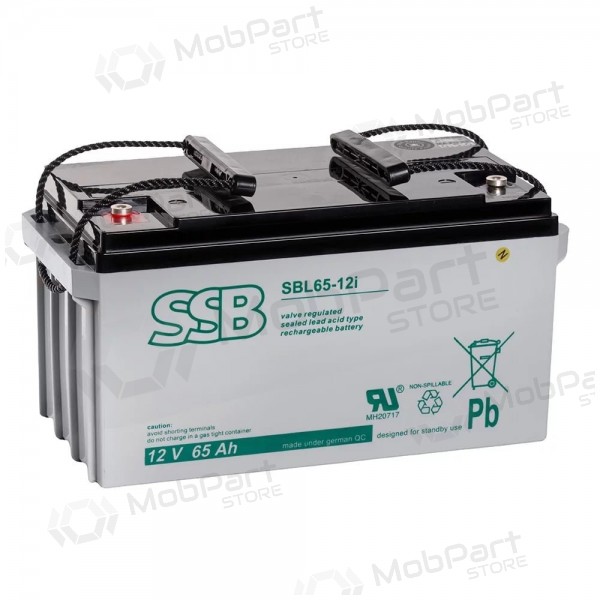

Battery (AGM) SSB SBL (65Ah, 12V, F13 M6, VRLA)

In stock: Yes

€ 182,70

Delivery is always on time

Order product today

And we will send your order tomorrow.

Quantity

General
Nominal voltage12 V
Nominal capacity68.8 Ah @ C20 to 1.75 V/cell, 65 Ah @ C10 to 1.80 V/cell
TechnologyAGM (Absorbent Glass Mat), VRLA (Valve Regulated Lead Acid)
Weight~ 21 kg
Design life time12 years (standby use), Long Life acc. Eurobat
Internal resistance~ 7 mΩ (fully charged)
Operating temperature rangeDischarge: -20°C to +60°C, Charge: 0°C to +50°C, Storage: -20°C to +60°C
Maximum discharge current650 A (5 seconds)
Short circuit current1500 A
Maximum charging current19.5 A
Charging voltageStandby use: 13.6 – 13.8 VDC, Cycle use: 14.6 – 14.8 VDC
Self dischargeMonthly loss less than 3% at 25°C
Container materialABS UL94HB (optional UL94-V0)
Dimensions (L x W x H)350 ±2 mm x 167 ±2 mm x 182 ±2 mm
Total height182 ±2 mm
Terminal typesInternal thread M6 (breaking torque 8–10 Nm)
Standards metPN-EN 60896-21:2007, PN-EN 60896-22:2007, PN-EN 61056-1:2013, PN-EN 61056-2:2013, PN-E-83016:1999
CertificationsISO 9001, ISO 14001
ApplicationsUPS, Emergency Lighting, Fire Alarm Systems, Security Systems, Energy Utilities, DC Power Supply
