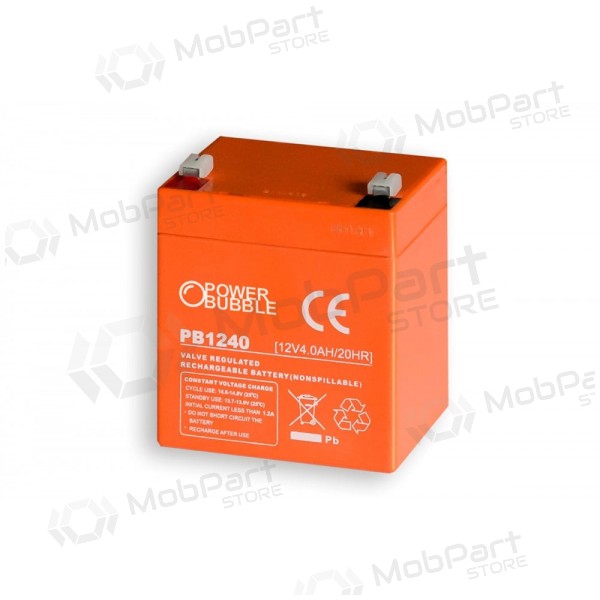

Battery Power Bubble PB1204 (4Ah, 12V)

In stock: Yes

€ 9,80

Delivery is always on time

Order product today

And we will send your order tomorrow.

Quantity

General
Cells per unit6
Voltage per unit12V
Nominal Capacity4Ah@20hour-rate to 1.75V per cell@25C
Weight1.25 kg (± 5%)
Internal resistance≤ 50 mΩ
TerminalF1, F2 (optional)
Max. discharge current40A (5 sec)
Short circuit current21A
Design life6-8 years
Max. charging current1.2A
Reference capacityC3 5.43Ah C5 6.11Ah C10 6.54Ah C20 7 Ah
Standby use capacity13.7V~13.9V @ 25°C Temperature Compensation: -3mV/'C/Cell
Cycle use voltage14.6 V~14.8V @ 25°C Temperature Compensation: -4mV/°C/Cell
Operating temperature rangeDischarge: -20'C~60C Charge: 0°C~50C Storage: -20'C~60°C
Normal operating temperature range25C+5C
Self dischargeRITAR Valve Regulated Lead Acid (VRLA) batteries can be stored for up to 6 months at 25°C and then recharging is recommended. Monthly Self-discharge ratio is less. than 3% at 25'C Please charge batteries before using
Container materialA.B.S. UL94-HB, UL94-V0 Optional
