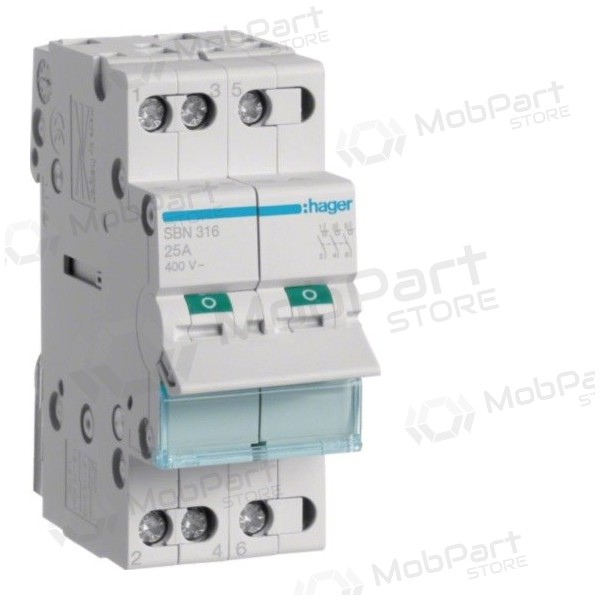

Isolator switch Hager SBN316 (3P, 16A, 400V, 2 modules)

In stock: Yes

€ 12,40

Delivery is always on time

Order product today

And we will send your order tomorrow.

Quantity

General
Number of poles3
Neutral positionWithout neutral
Pole type3P
Rated current16 A
Acceptable current rating (AC21 category A)16 A
Acceptable current rating (AC21 category B)16 A
Acceptable current rating (AC22 category A)16 A
Acceptable current rating (AC22 category B)16 A
Rated short-circuit making capacity Icm (415 V AC, IEC 60947-3)0.33 kA
Rated short-time withstand current Icw (1s, IEC 60947)0.24 kA
Rated conditional short-circuit current Inc (IEC/EN 60669-2-4)3000 A / 80 A gG parallel 32 A gG
Nominal tightening torque1.80 Nm
Bottom connection type (modular devices)Screw terminal
Rated operational voltage Ue400 V AC
Rated insulation voltage Ui440 V
Rated impulse withstand voltage Uimp4,000 V
Number of modules2
Ingress Protection (IP) classIP20
Frequency50–60 Hz
Height83 mm
Width35 mm
Depth68 mm
Number of NO contacts3
Number of NC contacts0
Operating temperature–20 to +70 °C
Storage/transport temperature–40 to +80 °C
Cross-section flexible conductor1.5–10 mm²
Cross-section rigid conductor1.5–16 mm²
Mechanical endurance200,000 operations
Electrical durability (AC21, at nominal load)25,000 cycles
Electrical durability (AC22, at nominal load)25,000 cycles
Total power loss at In1.20 W
Power loss per pole at In0.40 W
Down connection alignment (modular devices)Shifted terminal
Top connection alignment (modular devices)Shifted terminal
