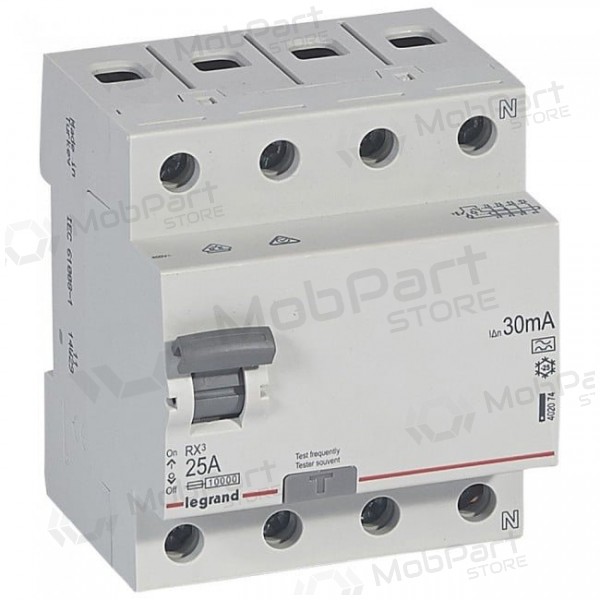

Current drain relay Legrand 402074 (A, 25A, 4P, 30mA, 400V)
zoom_out_map
Current drain relay Legrand 402074 (A, 25A, 4P, 30mA, 400V)

Current drain relay Legrand 402074 (A, 25A, 4P, 30mA, 400V)

€ 35,80
Delivery is always on time  Delivery is always on time
Order product today
And we will send your order tomorrow.
Quantity

  • General
  • Number of poles4
  • Rated voltage400 V
  • Rated current25 A
  • Rated fault current0.03 A
  • Rated insulation voltage Ui500 V
  • Rated impulse withstand voltage Uimp4 kV
  • Mounting methodDIN rail
  • Leakage current typeA
  • Selective protectionNo
  • Short-time delayed trippingNo
  • Short-circuit breaking capacity (Icw)10 kA
  • Surge current capacity0.25 kA
  • Voltage typeAC
  • With interlocking deviceYes
  • Frequency50 Hz
  • Additional equipment possibleNo
  • Degree of protection (IP)IP20
  • Width in number of modular spacings4
  • Built-in depth44 mm
  • Ambient temperature during operating-25-60 °C
  • Pollution degree2
  • Connectable conductor cross section multi-wired0.75-35 mm²
  • Connectable conductor cross section solid-core0.75-50 mm²
  • RAL-number (similar)7035
  • Explosion-proofNo
  • Width71.2 mm
  • Height88.9 mm
  • Depth78.85 mm
  • Degree of impact strength (IK)IK04
  • Storage temperature-40-70 °C
  • Nominal voltage340-440 V
  • Electric supplying directionBy the top or bottom
  • Terminal marking indicationYes
  • Stress test conformity (1000V)Yes
  • ColourGrey
  • Halogen freeYes
  • Connection typeScrewed terminal , Busbar and cable
  • Label space/information surfaceNo
