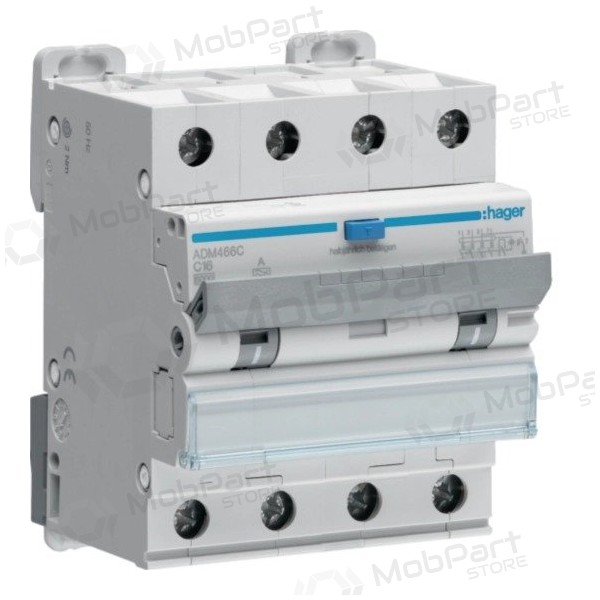

Residual current circuit breaker with overcurrent protection Hager ADM466C (4P, 16A, C, type A, 30mA, 6kA)
zoom_out_map
Residual current circuit breaker with overcurrent protection Hager ADM466C (4P, 16A, C, type A, 30mA, 6kA)

Residual current circuit breaker with overcurrent protection Hager ADM466C (4P, 16A, C, type A, 30mA, 6kA)

€ 164,70
Delivery is always on time  Delivery is always on time
Order product today
And we will send your order tomorrow.
Quantity

  • General
  • Rated current16 A
  • Rated residual operating current Idn30 mA
  • Rated short-circuit breaking capacity Icn (400 V AC, IEC 60898-1)6 kA
  • Rated current at –25 °C19.40 A
  • Rated current at –20 °C19.10 A
  • Rated current at –15 °C18.90 A
  • Rated current at –10 °C18.60 A
  • Rated current at –5 °C18.30 A
  • Rated current at 0 °C18.00 A
  • Rated current at 5 °C17.60 A
  • Rated current at 10 °C17.30 A
  • Rated current at 15 °C17.00 A
  • Rated current at 20 °C16.70 A
  • Rated current at 25 °C16.30 A
  • Rated current at 30 °C16.00 A
  • Rated current at 35 °C15.60 A
  • Rated current at 40 °C15.20 A
  • Rated current at 45 °C14.90 A
  • Rated current at 50 °C14.40 A
  • Rated current at 55 °C14.00 A
  • Rated current at 60 °C13.60 A
  • Curve typeC
  • Neutral positionLeft, Right
  • Pole type4P
  • Number of protected poles4
  • Number of modules4
  • Residual current typeA
  • Ingress Protection (IP) classIP2X
  • Voltage supply typeAC
  • Rated operational voltage Ue230–400 V
  • Rated insulation voltage Ui500 V
  • Dielectric strength (power frequency)2 kV
  • Rated impulse withstand voltage Uimp4,000 V
  • Overvoltage category (IEC 60947-1)3
  • Nominal tightening torque (top terminal)2 Nm
  • Nominal tightening torque (bottom terminal)2 Nm
  • Nominal tightening torque (general)2 Nm
  • 360° mounting positionYes
  • Top connection type (modular devices)Screw terminal
  • Bottom connection type (modular devices)Biconnect
  • Rated short-circuit breaking capacity Icn AC (IEC 60898-1)6 kA
  • Frequency50 Hz
  • Input cross-section (flexible conductors)1–16 mm²
  • Input cross-section (rigid conductors)1–25 mm²
  • Energy limitation class I²t3
  • Operating temperature–25 to +40 °C
  • Height84 mm
  • Width71 mm
  • Depth70 mm
  • Connection typeScrew terminal
  • Total power loss at In10.90 W
