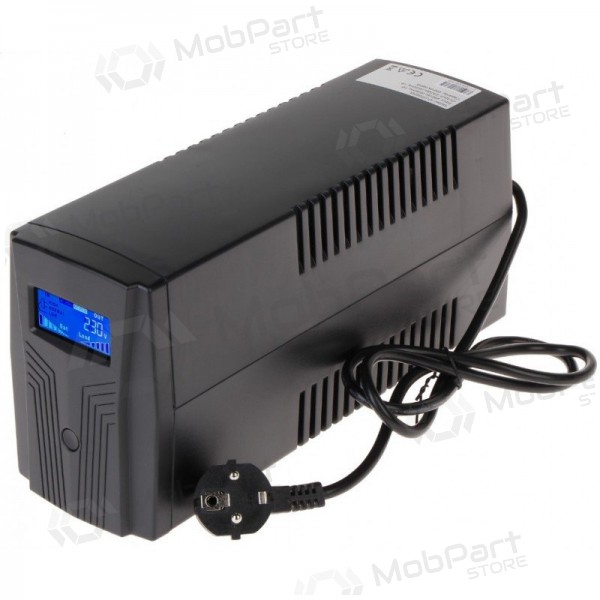

East EA265 UPS (tower, LCD, 650 VA/390W)

This East EA265 uninterruptible power supply (UPS) is a tower-type device with an LCD monitor, designed to ensure a reliable power supply and protection for sensitive electronic equipment. Its main capacity is 650 VA/390 W, effectively protecting connected devices from voltage fluctuations, surges, and sudden power outages. This solution with digital control is ideal for offices or homes where stabilized power and continuous system status monitoring are required.

Product Information

General Features

• Main Capacity: 650 VA/390 W
• LCD Monitor
• Digital Control

Input/Output Parameters

• Input Voltage: 100V / 110V / 120V: 80~150Vac; 220 V / 230 V / 240 V: 162 ~ 295 Vac (220 V: 145 ~ 295 Vac optional)
• Input Frequency: 50 / 60 Hz ± 10% (auto-sensing)
• Output Voltage: 100 V / 110 V / 120 Vac ± 10% or 220 V / 230 V / 240 Vac ± 10%
• Frequency: 50 / 60 Hz ± 1% (auto-sensing)
• Waveform: AC Mode: pure sine wave; Battery Mode: simulated sine wave
• Transfer Time: 2 ~ 7 ms (typical), 10 ms (max.)

Battery and Charging

• DC Voltage: 12 V
• Battery: 12 V / 7.0 Ah × 1
• Charging Time: 6 ~ 8 h

Protection and Features

• Protection: Short circuit – battery overcharge – over-discharge – overload – surge protection
• Optional RS232 / USB and RJ11 / RJ45 protection
• Safe device shutdown with notification via configurable interface

Connections

• Connections: 2 x Schuko, USB, 2 x RJ45
• USB: Supports Windows® 98 / 2000 / 2003 / XP / Vista / 2008 / 7 / 8 / 10

Physical Parameters and Environment

• Humidity Resistance: 20 ~ 90% relative humidity @ 0 ~ 40℃ (non-condensing)
• Noise Level: ≤ 45 dB (1 m)
• Weight: 5.1 / 5.4 kg
• Dimensions: 95 × 320 × 160 mm
• Package Dimensions: 145 × 375 × 230 mm

Downloads / Certificates

📄CE Declaration
