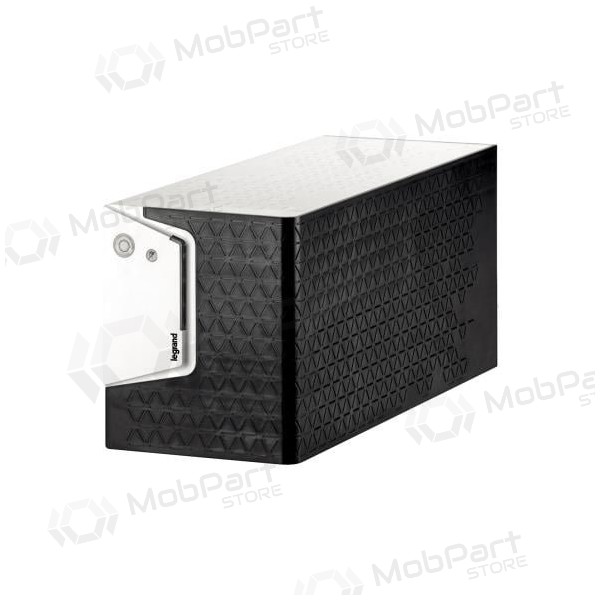

Legrand 310190 UPS (tower, 1500VA/900W)

Legrand 310190 UPS is a line-interactive uninterruptible power supply, designed to protect electronic equipment from power grid disturbances. This tower-type device ensures reliable 1500 VA / 900 W output power, ideally suited for home or office computers and small server equipment. It helps to maintain data integrity and uninterrupted operation during voltage fluctuations or power outages.

Product Information

General Characteristics

• UPS Technology: Line-interactive
• Form Factor: Freestanding (Tower)
• Voltage Type: Alternating Current (AC)
• Controlled Load Type: Universal
• Power Outlets: Yes
• Battery: Yes

Power and Output Parameters

• Input Voltage: 170-280 V
• Input Frequency: 45-65 Hz
• Number of Input Phases: 1
• Output Voltage: 207-253 V
• Output Frequency: 49-61 Hz
• Number of Output Phases: 1
• Active Output Power: 900 W
• Apparent Output Power: 1500 VA
• Output Power Factor: 0.6
• Overall Efficiency: 97 %
• Transfer Time (Full Load): 0 min

Connections and Communication

• Input Connector: C14
• USB Interface: Yes
• RS-232 Interface: Yes
• SNMP Support: No
• Number of Output Connectors (C13): 2
• Number of Output Connectors (C19): 0
• Number of Output Connectors with Protective Earth (CEE 7/3, Type F): 2
• Number of Fixed Output Connectors: 0
• Number of Output Connectors (French Standard Type E): 0
• Dry Contact for Switching: No
• Network Management: No

Dimensions and Environmental Conditions

• Height: 173 mm
• Width: 148 mm
• Depth: 380 mm
• Weight: 10.5 kg
• IP Rating: Not Applicable
• Operating Temperature: 0-40 °C
• Storage Temperature: 0-40 °C
• Noise Level: 40 dB

Design and Control

• Smart LED Bar
• Modern Black/White Design
• Graphic LED Bar for Battery Level Indication, Mute Button for Audible Alarms

Downloads / Certificates

📄CE Declaration

📄Specification
