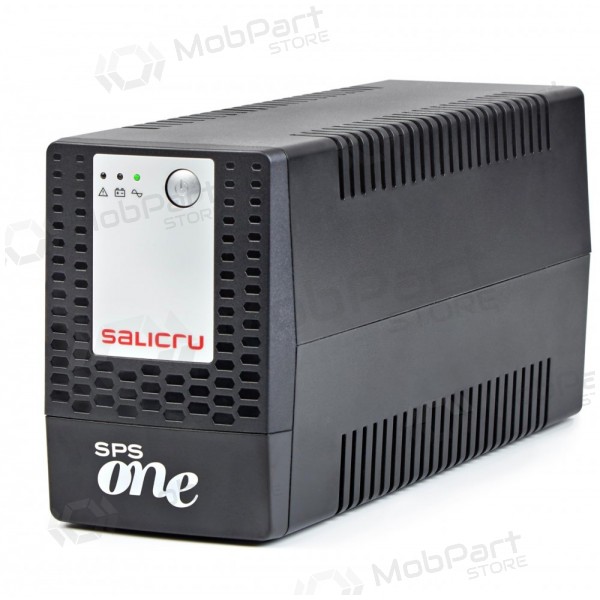

Salicru UPS SPS 500 ONE BL IEC (500VA/240W, tower, 4×C13, line interactive)

Salicru UPS SPS 500 ONE BL IEC is an uninterruptible power supply (UPS) designed to protect electronic equipment from power grid fluctuations and outages, ensuring a stable energy supply. This line-interactive technology model, with a power rating of 500VA/240W, is suitable for use in homes and small offices where efficient data protection and system operational continuity are essential. The tower format device with 4 IEC C13 outputs efficiently stabilizes voltage and provides backup power during critical situations.

Product Information

General Features

• Model: SPS 500 ONE BL IEC
• Manufacturer Code: 662AG000002
• Technology: Line-interactive
• Format: Tower
• Power: 500VA / 240W

Input Characteristics

• Input Voltage: 220 V / 230 V / 240 V AC
• Voltage Range: 162 V ÷ 290 V
• Stabilizer: AVR Buck / Boost
• Nominal Frequency: 50 / 60 Hz (Auto sensing)
• Protection: Thermal reset or fuse (depending on the model)

Output Characteristics

• Output Voltage: 220 V / 230 V / 240 V AC
• Voltage Accuracy (Battery Mode): ±10%
• Waveform (Battery Mode): Simulated sine wave
• Frequency: 50 / 60 Hz ± 1 Hz
• Transfer Time: 2 / 6 ms
• Socket Type: 4 x IEC

Batteries

• Battery Type: Sealed Pb-Ca, maintenance-free, 3-5 years service life
• Batteries: 1×12V/4.5Ah
• Recharge Time: 4-6 hours to 90% capacity
• User Replaceable Battery: Yes
• Backup Runtime: Up to 20 minutes
• Battery Replacement Signal: Yes

Communication and Management

• Communication: USB HID
• Monitoring Software: Compatible with Windows, Linux, Unix, Mac (downloadable from support.salicru.com)
• Indicators: LEDs for Normal, AVR, and Battery Modes
• Audible Alarms: Battery operation (every 10s), Low battery (every 1s), Overload (every 0.5s), Fault (continuous), Battery replacement (every 2s)
• Functions: Cold start (power-on from battery), Automatic restart after backup power depletion

Environmental and Physical Data

• Operating Conditions (Temperature): 0º C ÷ +40º C
• Relative Humidity: Up to 90%, non-condensing
• Maximum Operating Altitude: 2,400 m above sea level
• Acoustic Noise: < 40 dB at 1 meter distance
• Dimensions: 300 × 101 × 142 mm
• Weight: 3.5 kg
• Casing: Plastic

Standards and Certifications

• Standards: EN IEC 62040-1 (Safety), EN IEC 62040-2 (EMC), EN IEC 62040-3 (Performance)
• Certifications: ISO 9001, ISO 14001, ISO 45001
