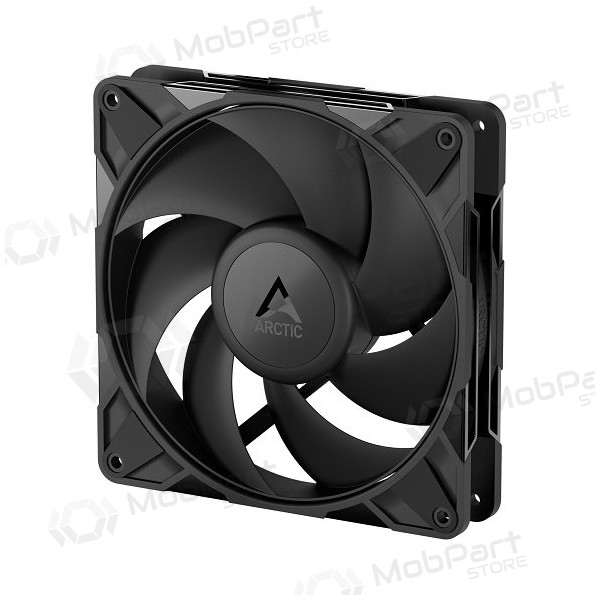

ARCTIC P14 PRO PWM PST case fan, 4-pin, 140mm, black

Case Fan P14 Pro PST, 4-pin, 140mm, black


Features:
Efficient performance under high air resistance. Due to their high static pressure, 'Pro' series fans efficiently push air through narrow spaces. This makes them ideal for radiators, perforated plates, and mesh filters.
PST – PWM-based synchronized fan control. An additional PWM connector allows multiple fans to be synchronized in series using a single connection.
Optimized bearing and axle design (FDB): The Fluid Dynamic Bearing, combined with an extended axle, ensures quieter operation by distributing pressure more evenly and reducing vibrations.
Automatic two-plane balancing: An automatic two-level measurement and balance correction system ensures exceptional fan impeller precision and smooth operation by precisely distributing the balancing mass at two different depths.
Advanced microcontroller reduces motor noise, compensates for load fluctuations, and protects against high inrush currents or incorrect polarity connection during startup.
More power, less noise. The fan ensures higher performance at low speeds, increased airflow and static pressure, with a noise level of only 25 dB(A) – ideal for quiet and powerful cooling.
6-year warranty. Excellent long-term testing results, even under particularly unfavorable conditions, ensure that these products are not only of high quality but also durable, thus they are covered by a 6-year manufacturer's warranty.
Maximum performance: The improved fan blade design ensures an optimal balance of performance and smooth operation. Smaller gaps allow for greater static pressure and maximum airflow efficiency.


Technical data:
Speed: 400-2500 RPM PWM controlled (0 RPM below 5% PWM).
Airflow: 110 CFM / 186 m³/h.
Static pressure: 5.2 (mm / H2O).
Bearing: Fluid Dynamic Bearing.
Voltage/current: 0.35A/ 12V DC.
Connector: 4-pin + 4-pin socket.
Cable length: 400mm+80mm.
Dimensions: 140x140x27 mm.
Weight: 242 g.
Color: black.


Warranty: 6 years.
