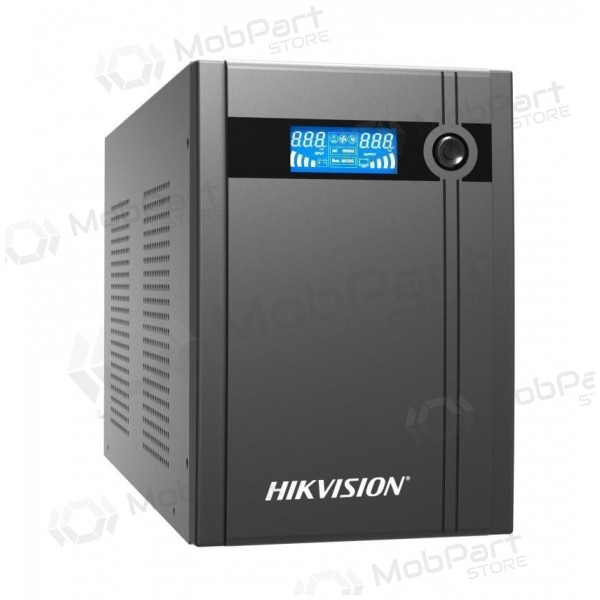

HIKVISION UPS DS-UPS3000 (3000VA/1800W, tower)

Hikvision DS-UPS3000 is an Uninterruptible Power Supply (UPS) designed to reliably protect various electronic equipment from power grid fluctuations and outages. This 3000 VA / 1800 W power device ensures stable power, making it suitable for protecting servers, workstations, or other critical systems. Its function is to automatically switch to battery power during a power failure, thus saving data and extending equipment operating time.

Product Information

General Features

• Type: UPS (Uninterruptible Power Supply)
• Model: DS-UPS3000
• Brand: Hikvision
• UPS Type: Offline (Standby)
• Dimensions (Height x Width x Depth): 412 mm × 145 mm × 210 mm
• Weight: Approximately 18.5 kg
• Operating Temperature: 0 °C to 40 °C
• Operating Humidity: 30% to 90% (non-condensing)

Power Specifications

• Capacity: 3000 VA / 1800 W
• Input Voltage Range: 140 VAC to 290 VAC
• Output Voltage Range: 210 VAC to 235 VAC
• Input Frequency: 50/60 Hz
• Output Frequency: 50 Hz ± 0.5 Hz
• Transfer Time: ≤ 10 ms
• Waveform: Modified Sine Wave (PWM)

Battery

• Battery Type: 12 V/9 Ah
• Number of Batteries: 4x 12V/9Ah
• Recharge Time: 6-8 hours to 90% capacity

Interfaces and Connectors

• Communication Ports: USB
• Output Sockets: 4x Schuko
• USB-B Port: 1

Protection and Features

• Protection Against: Overvoltage, Overload, Short Circuit, Excessive Battery Discharge
• Features: AVR (Automatic Voltage Regulation)
• Display: LCD

Downloads / Certifications

📄CE Declaration

📄Datasheet
