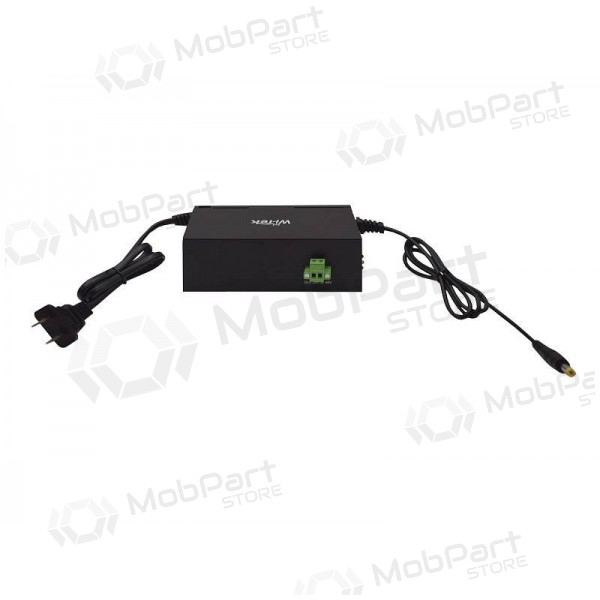

Wi-Tek power adapter PoE UPS WI-PS302G-UPS

This Wi-Tek WI-PS302G-UPS power adapter with an uninterruptible power supply (UPS) function is designed for reliable power and data delivery to network devices. It supports 48V 802.3af/at PoE with a 30W output, ensuring efficient power transmission over an Ethernet cable. The device is ideal for use in environments where stable PoE power and a backup power source are required.

Product Information

Key Features

• Interfaces: 2 10/100/1000Mbps RJ45 ports (Auto-negotiation/Auto MDI/MDIX)
• Network: 10BASE-T: UTP Category 3, 4, 5 cable (maximum 100m); 100BASE-TX/1000Base-T: UTP Category 5, 5e, 6 or higher cable (maximum 100m)
• Cooling: Fanless
• Switching Capacity: 4Gbps
• Packet Forwarding Rate: 2.98Mpps
• MAC Address Table: 2K
• Packet Buffer Memory: 1Mb
• Jumbo Frames: 10240 bytes
• Dimensions: 158mm*142mm*35mm (L*W*H)
• Protection Level: 6KV lightning protection, 6KV ESD contact discharge
• Certifications: CE, FCC, RoHS
• Package Contents: PoE device, power cord, manual/warranty card

Power and PoE

• Power Support: AC 90-240V input, 12V battery 30AH max.
• PoE Ports (RJ45): 48V 802.3af/at PoE 30W or 24V passive PoE 24W (auto-detection)
• Power Consumption: 30W (max with connected PoE device), 1W max (without PoE output)
• DC Output: 1* 12V 3A max, 1* 24/48V selectable
• Battery Input Specification: 12V 30AH max

Environmental Conditions

• Operating Temperature: -30℃～70℃
• Storage Temperature: -30℃～70℃
• Operating Humidity: 10%～90% RH (non-condensing)
• Storage Humidity: 5%～90% RH (non-condensing)

Downloads / Certifications

📄CE Declaration

📄Datasheet
