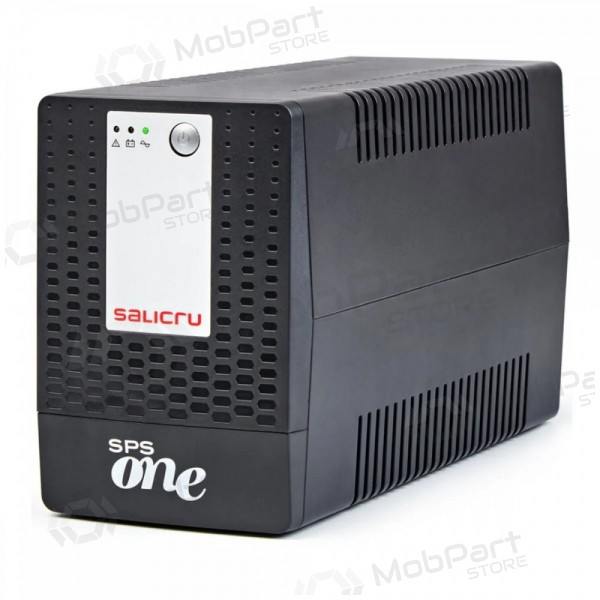

Salicru UPS SPS 1100 ONE BL IEC (1100VA/600W, tower, 6×C13, line interactive)

This Salicru SPS 1100 ONE BL IEC uninterruptible power supply is designed to ensure a stable electricity supply and protect sensitive electronics from voltage fluctuations and outages. With 1100VA / 600W power and Line-interactive technology, this tower-type unit is ideal for home or office environments. It effectively stabilizes voltage and provides backup power, allowing for the safe shutdown of connected devices in the event of power disturbances.

Product Information

General Information

• Model Code: 662AG000011
• Power Capacity (VA/W): 1100 / 600
• Dimensions (D × W × H mm): 320 × 130 × 182
• Weight (Kg): 8.2
• Technology: Line-interactive
• Form Factor: Tower
• Casing: Plastic

Input Parameters

• Input Voltage: 220 V / 230 V / 240 V AC
• Voltage Range: 162 V to 290 V
• Stabilizer: AVR Buck/Boost
• Rated Frequency: 50 / 60 Hz
• Automatic Frequency Detection: Yes
• Protection: Thermal Reset or Fuse (depending on the model)

Output Parameters

• Output Voltage: 220 V / 230 V / 240 V AC
• Output Receptacles: 6 × IEC
• Voltage Accuracy (battery mode): ±10%
• Waveform (battery mode): Simulated Sine Wave
• Frequency: 50 / 60 Hz ± 1 Hz
• Transfer Time: 2 / 6 ms

Battery

• Batteries: 2×12V/7Ah
• Battery Type: Sealed Pb-Ca, maintenance-free, estimated service life 3-5 years
• Recharge Time: 4-6 hours to 90% capacity
• User-Replaceable Battery: Yes
• Backup Runtime: Up to 20 minutes
• Battery Replacement Alarm: Yes

Communication and Management

• Communication Ports: USB HID
• Monitoring Software: Compatible with Windows, Linux, Unix, and Mac (downloadable from support.salicru.com)

Indication and Alarms

• Indicators: LED status indicators
• Operating Modes: Normal / Stabilization (AVR) / Battery Mode
• Mains Voltage Available: Green LED
• Alarm Indications: Output battery mode, low battery, charger fault, and overload
• Audible Alarms: Every 10 s in battery mode, every 1 s for low battery, every 0.5 s for overload, continuous for fault, 2 s for battery replacement
• Fault Indicator: Red LED
• Cold Start (start from battery): Yes
• Automatic Restart: Yes, after backup runtime expires

Operating Conditions and Standards

• Operating Conditions (temperature): 0º C to +40º C
• Relative Humidity: Up to 90%, non-condensing
• Maximum Operating Altitude: 2,400 m above sea level
• Acoustic Noise at 1m distance: < 40 dB
• Standards: Safety: EN IEC 62040-1, EMC: EN IEC 62040-2, Performance: EN IEC 62040-3
• Certifications: ISO 9001, ISO 14001, ISO 45001
